Minco India — Complete Product Datasheets
Full technical specifications, dimensions, application notes and ordering codes for all products.
MINTEMP Thermocouple Probes
Disposable immersion thermocouple tips for accurate, single-use temperature measurement in molten iron and steel. Manufactured to BS EN 60584-1 ITS-90 standard. Compatible with all major lance and instrument systems globally.
Each tip contains a precision-calibrated thermocouple junction protected by a cardboard and steel outer tube, designed to vaporise on immersion — delivering a clean, accurate reading within 2–4 seconds.
Technical Specifications
| Thermocouple Type | Type S (Pt/PtRh 10%) and Type B (Pt/PtRh 30%) |
| Measurement Range | 1200°C – 1750°C |
| Accuracy | ±2°C (per BS EN 60584-2) |
| Response Time | 2–4 seconds immersion |
| Outer Tube | Cardboard / Steel protection — standard & heavy-duty |
| Connector | Standard universal pin connector |
| Compatibility | Drop-in replacement for Heraeus, Celox, Sidermes and others |
| Standard | BS EN 60584-1 ITS-90 / BS EN 60584-2 |
MINOX Oxygen Probes
MINOX Oxygen Probes — Low PPM
Electrochemical zirconia-based oxygen sensors for primary steelmaking (BOF/Converter and EAF). Measures dissolved oxygen activity in liquid steel at low parts-per-million levels, essential for deoxidation control and alloy yield optimisation.
| Measurement Principle | Electrochemical zirconia solid electrolyte |
| Measurement Range | 1 – 1000 ppm dissolved oxygen |
| Temperature Range | 1400°C – 1650°C |
| Response Time | 4–6 seconds |
| Reference Electrode | Cr/Cr₂O₃ standard |
| Output | EMF millivolt signal — compatible with all instruments |
| Compatibility | Replacement for Celox, Heraeus oxygen probes |

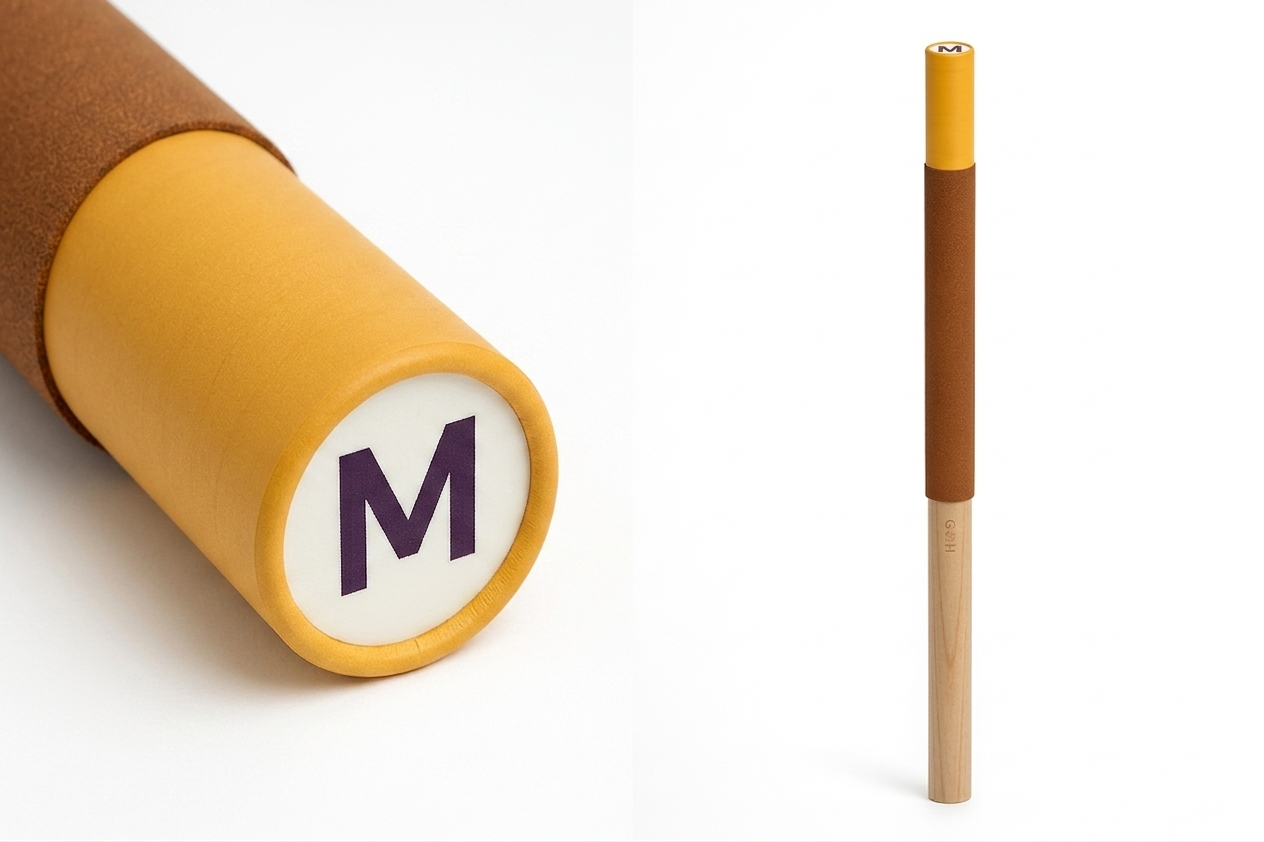

MINOX Oxygen Probes — High PPM
Designed for secondary metallurgy and ladle refining applications where oxygen levels are typically in the high ppm range. Accurate measurement enables precise alloy addition control for premium steel grades.
| Measurement Range | 10 – 3000 ppm dissolved oxygen |
| Temperature Range | 1500°C – 1700°C |
| Response Time | 3–5 seconds |
MINSAMP Sampler Probes
MINSAMP Steel & Slag Samplers
Disposable steel and slag samplers for chemical analysis. The probe is immersed in liquid steel; steel flows into a sealed metal mould and solidifies to form a lollipop or disc sample for spectrometric analysis. Available in single-chamber (steel only) and double-chamber (steel + slag) designs.
| Sample Type | Lollipop (disc) — 30mm dia, 6mm thick |
| Chamber Design | Single (steel) or Double (steel + slag) |
| Material | Steel mould with cardboard outer protection |
| Application Temp. | Up to 1650°C |
| Analysis Compatible | OES spectrometer, XRF |
Measuring Instruments
METNET II — Oxygen Measuring Instrument
Advanced oxygen and temperature measuring system with touchscreen display. Provides real-time readings of temperature (°C), oxygen (ppm), millivolts and % aluminium simultaneously. Works with MINOX oxygen probes and MINTEMP thermocouples. SCADA-compatible with data logging and graphical trend display.
| Display | Large 7-segment LED — visible 10m+ |
| Input | mV signal from MINOX oxygen probe |
| Output | 4–20mA analog + RS-232/485 (optional) |
| Signal Lights | Green / Yellow / Red process status |
| Mounting | Panel / rack mount, IP54 enclosure |
| Power | 85–265V AC universal |

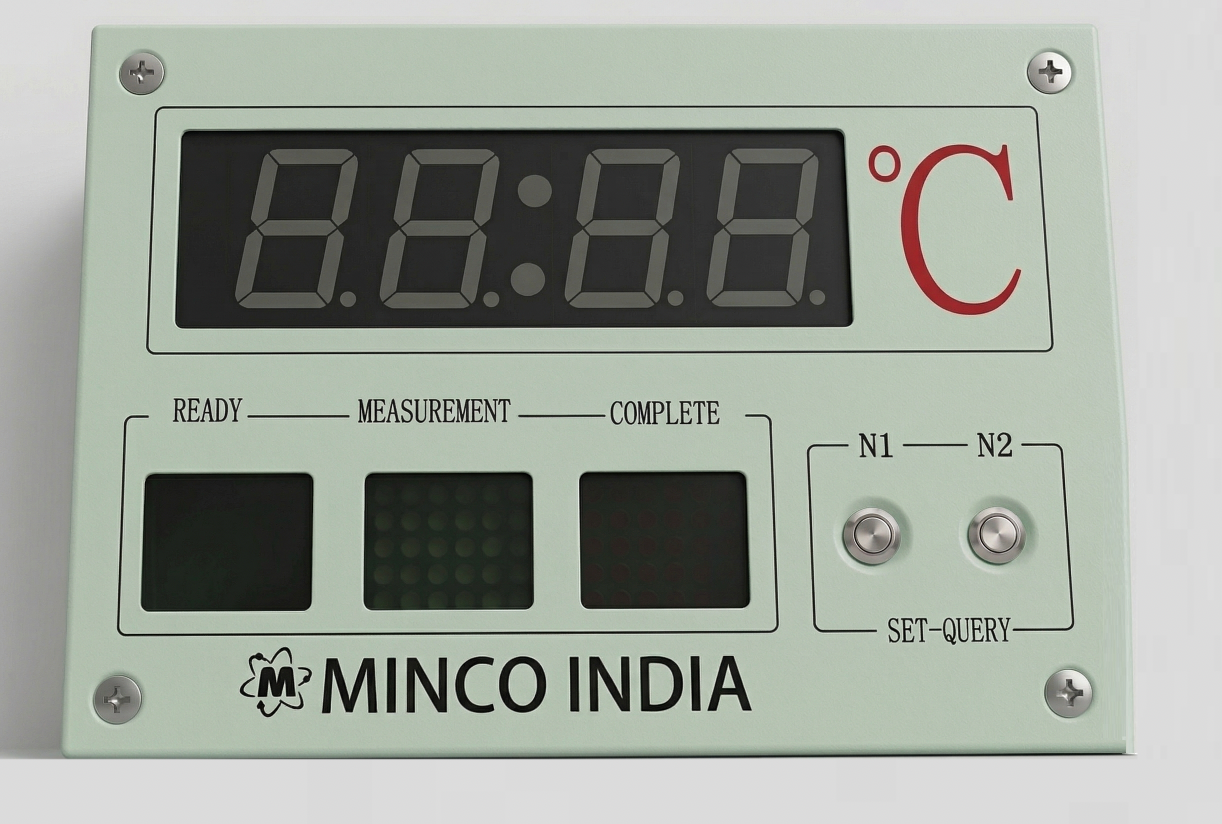

MINTHERM — Display Instrument
Panel-mounted temperature and oxygen display instrument for steelmaking process control. Large LED digital display readable from across the furnace floor. Includes three-colour signal lights (green/yellow/red) for at-a-glance process status indication. Supports simultaneous T+O display and 4–20mA output for SCADA integration.
| Display | Large 7-segment LED — visible 10m+ |
| Signal Lights | Green / Yellow / Red process status indicator |
| Inputs | Type S / Type B thermocouple + mV (oxygen) |
| Output | 4–20mA analog + RS-232/485 (optional) |
| Mounting | Panel / rack mount, IP54 enclosure |
| Power | 85–265V AC universal |
2-in-1 & 3-in-1 Combined Probes
2-in-1 & 3-in-1 Combined Probes
Single lance immersion that simultaneously measures temperature + oxygen (2-in-1) or temperature + oxygen + steel sample (3-in-1). Dramatically reduces measurement time per heat, eliminates separate lance handling operations, and improves process efficiency.
| 2-in-1 Measurement | Temperature (Type S) + Oxygen (Low or High PPM) |
| 3-in-1 Measurement | Temperature + Oxygen + Steel Sample (disc) |
| Time Saving | Replaces 2–3 separate lance operations |
| Compatibility | Standard universal lance holders |
ULC Probes Ultra Low Carbon

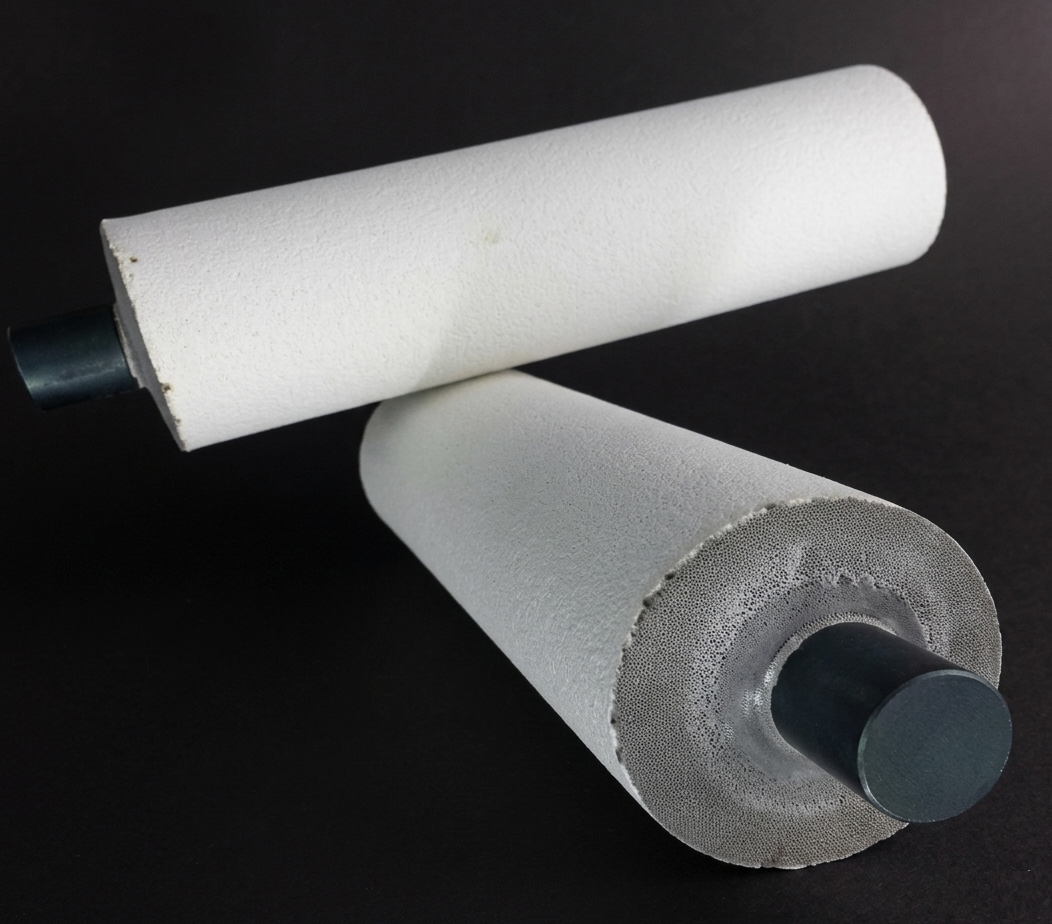

ULC Probes — Ultra Low Carbon
Specialist samplers for ultra-low carbon (ULC) steel grades — IF steel, HSLA, electrical steel. The ULC probe uses a sealed sampling system to prevent atmospheric carbon pick-up, ensuring accurate analysis of carbon-critical steel grades.
| Carbon Range | Below 30 ppm C (ULC/IF grade) |
| Sealing | Hermetically sealed mould for no carbon pick-up |
| Application | RH / VD degassed steels, IF/ULC grade production |
Pin Samplers
Pin Samplers
Compact pin-type steel samplers for quick chemical analysis at ladle and tundish. Suitable for spectrometric analysis of carbon, sulphur, phosphorus and alloying elements in standard and high-alloy steels.
| Sample Type | Steel rod / lollipop disc |
| Application | Ladle, tundish, converter tap |
| Compatibility | Universal lance holders |
Hydrogen Probes
HydroinS — In-Situ Hydrogen Probes
In-situ dissolved hydrogen measurement in liquid steel, directly at the ladle or degasser. The HydroinS system provides real-time hydrogen readings for vacuum degassing process control — eliminating the risk of hydrogen-induced cracking in high-value steel grades without waiting for laboratory results.
Deployed at Gerdau's facilities for hydrogen control in high-strength engineering steel production.
| Measurement Principle | Electrochemical — HDPE membrane diffusion |
| Measurement Range | 0.5 – 15 ppm H in liquid steel |
| Response Time | < 60 seconds to stable reading |
| Temperature Range | 1500°C – 1680°C |
| Output | Digital display + 4–20mA analog output |
| Probe Life | Single-use immersion probe |
HydroinS — Hydrogen Measurement Instrument
The HydroinS instrument processes the signal from the hydrogen probe and provides real-time dissolved hydrogen concentration readings. Panel-mounted with 4–20mA output for SCADA integration. Designed for vacuum degassing stations where precise hydrogen control is critical.
| Display | Digital — ppm H reading |
| Output | 4–20mA analog + digital display |
| Application | RH / VD degassing control |
| Power | 85–265V AC universal |
Sublance Probes

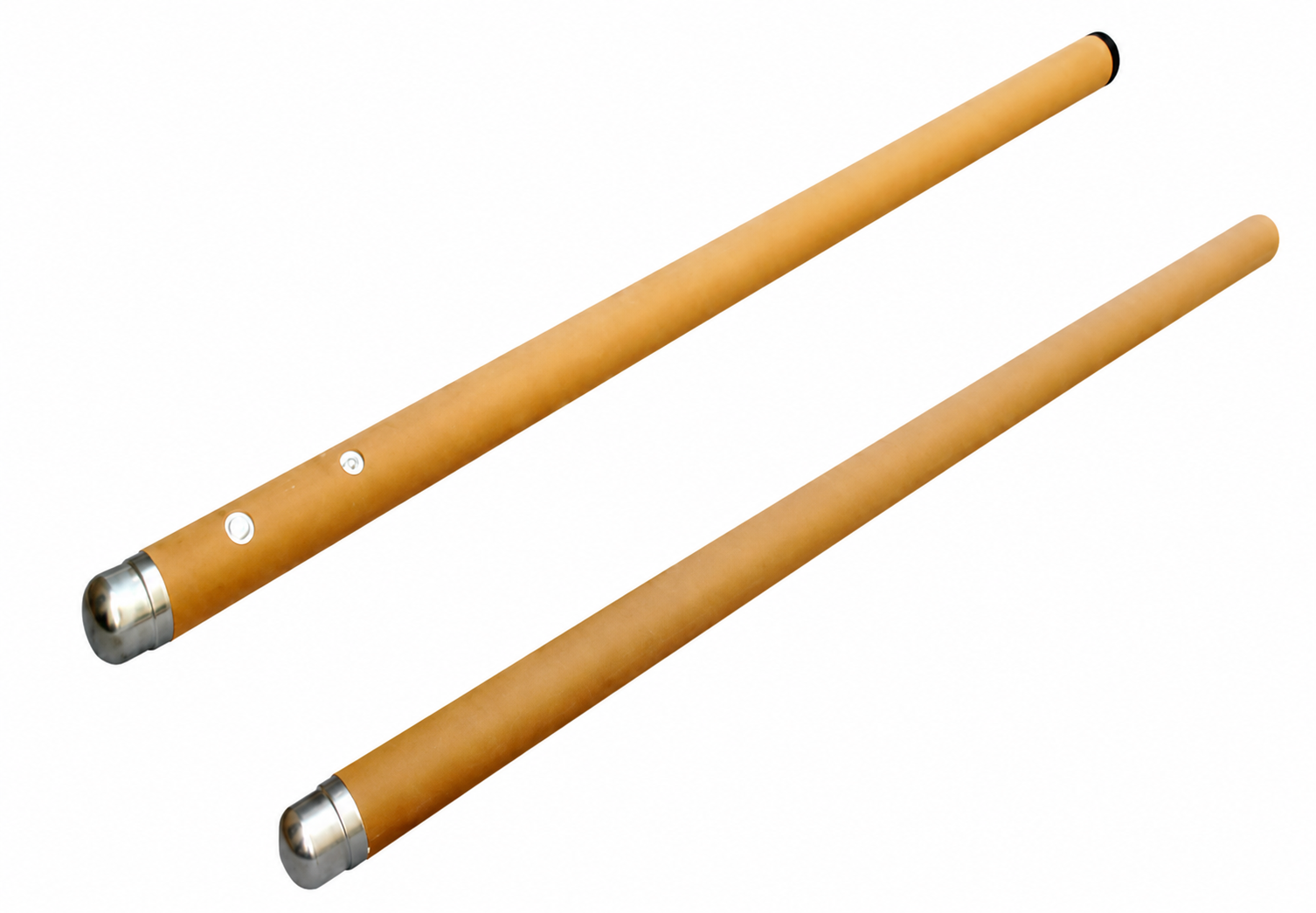

Sublance Thermocouple System
Specially designed thermocouple tips for sublance systems at BOF converters. The sublance delivers automated temperature and sample measurements during the blow without stopping the process. Minco's sublance tips are precision-manufactured for exact dimensional compatibility with automated sublance equipment.
| Application | Automated sublance BOF measurement |
| Measurement | Temperature ± oxygen (combined available) |
| Compatibility | All major sublance OEM systems |
MI-866 Calibrator & Indicator

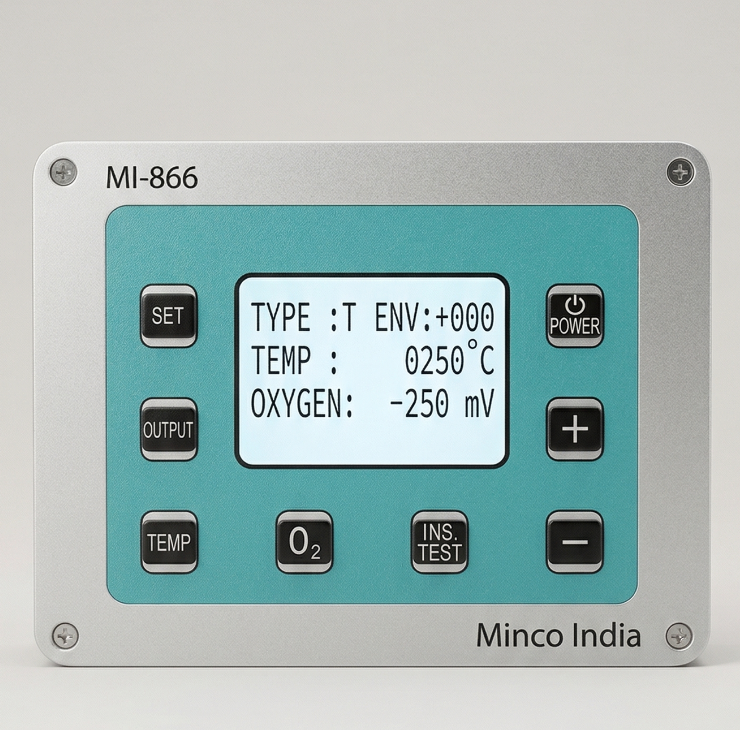

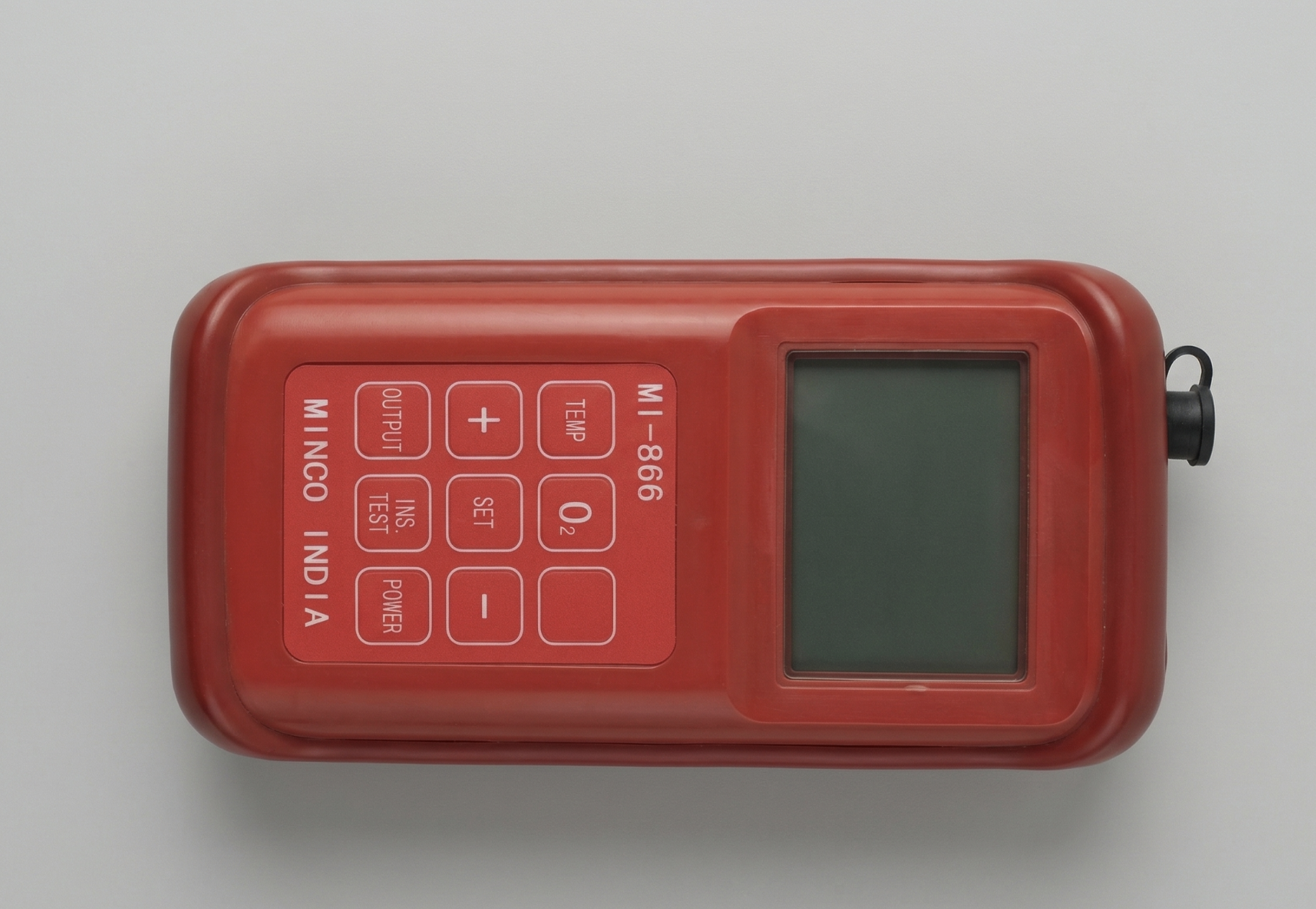

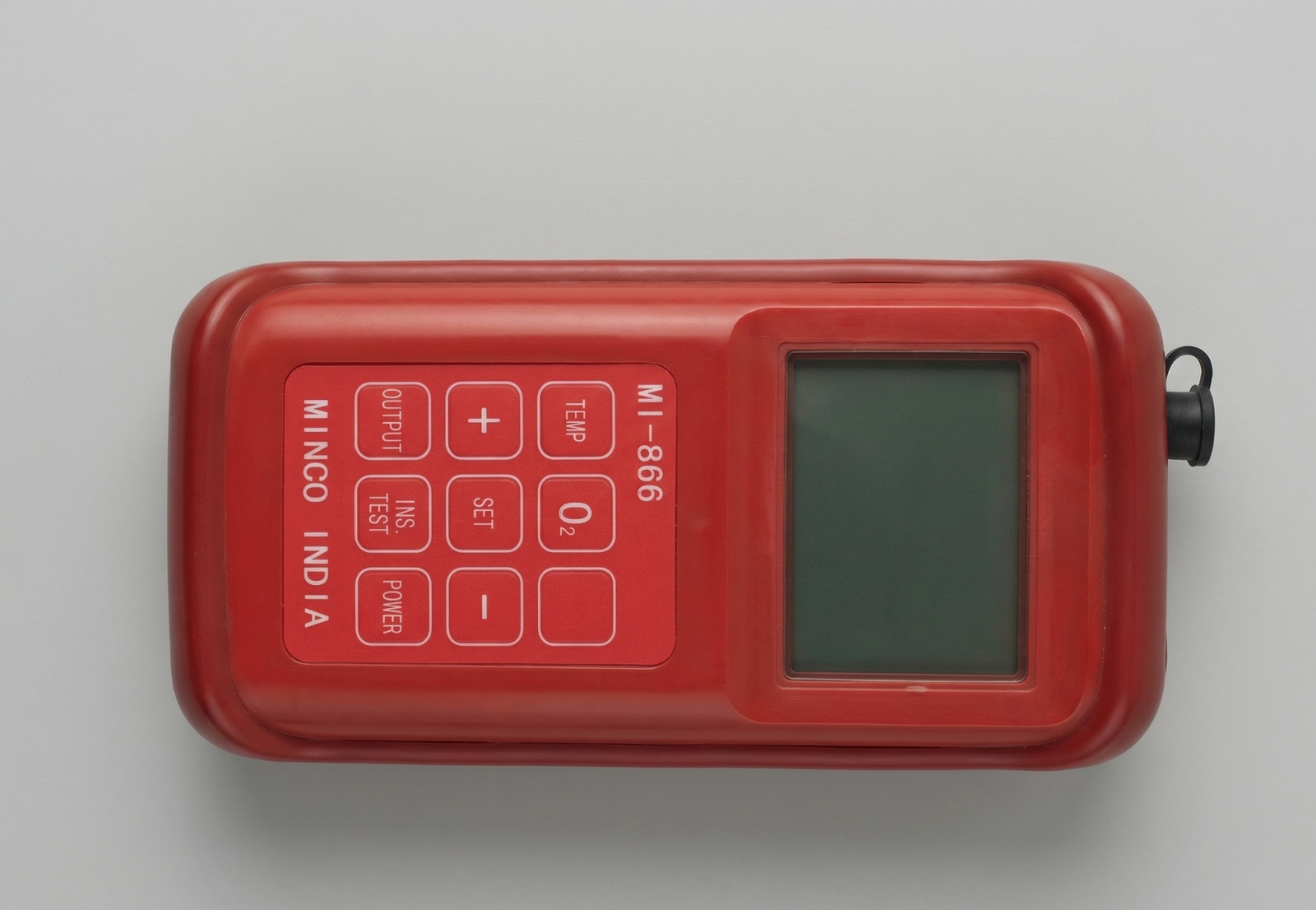

MI-866 — Digital Calibrator & Indicator
Precision millivolt indicator and calibrator for thermocouple and oxygen probe signals. Available in robust metal-body panel version and portable handheld plastic-body version for field calibration. Used for instrument verification, probe testing, and portable measurement at the lance.
| Input | mV signal (thermocouple + oxygen EMF) |
| Display | Digital LCD / LED — 4-digit |
| Accuracy | ±0.1°C / ±0.01mV |
| Metal Body (MI-866-M) | Panel mount, IP54, 85–265V AC |
| Handheld (MI-866-P) | Portable, battery operated, field use |
Lance, Cables & Accessories

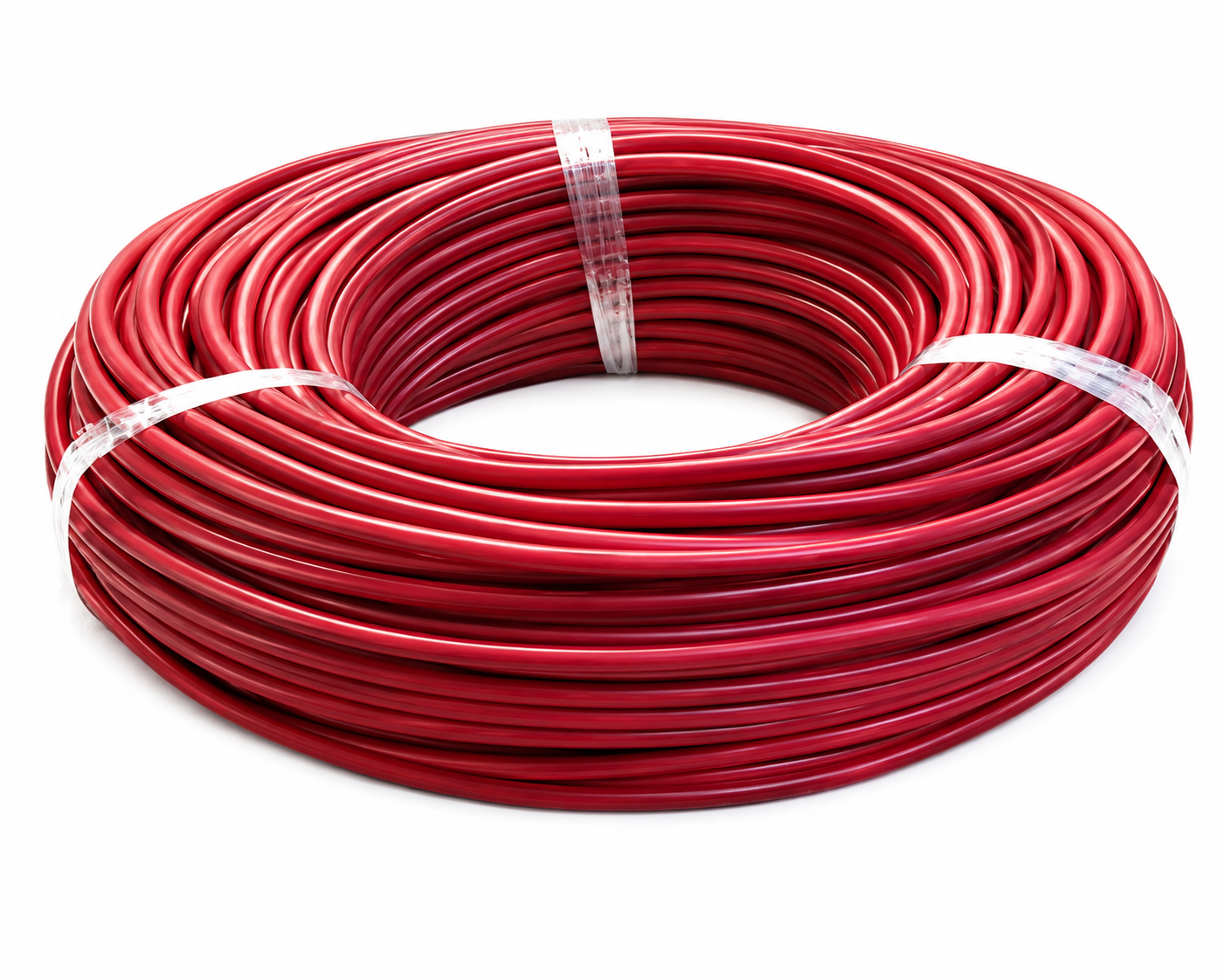

MI Cable — Compensating Extension Wire
Type S and Type R compensating extension cables for thermocouple signal transmission from lance to instrument. Available in single-pair and multi-core.
Enquire →

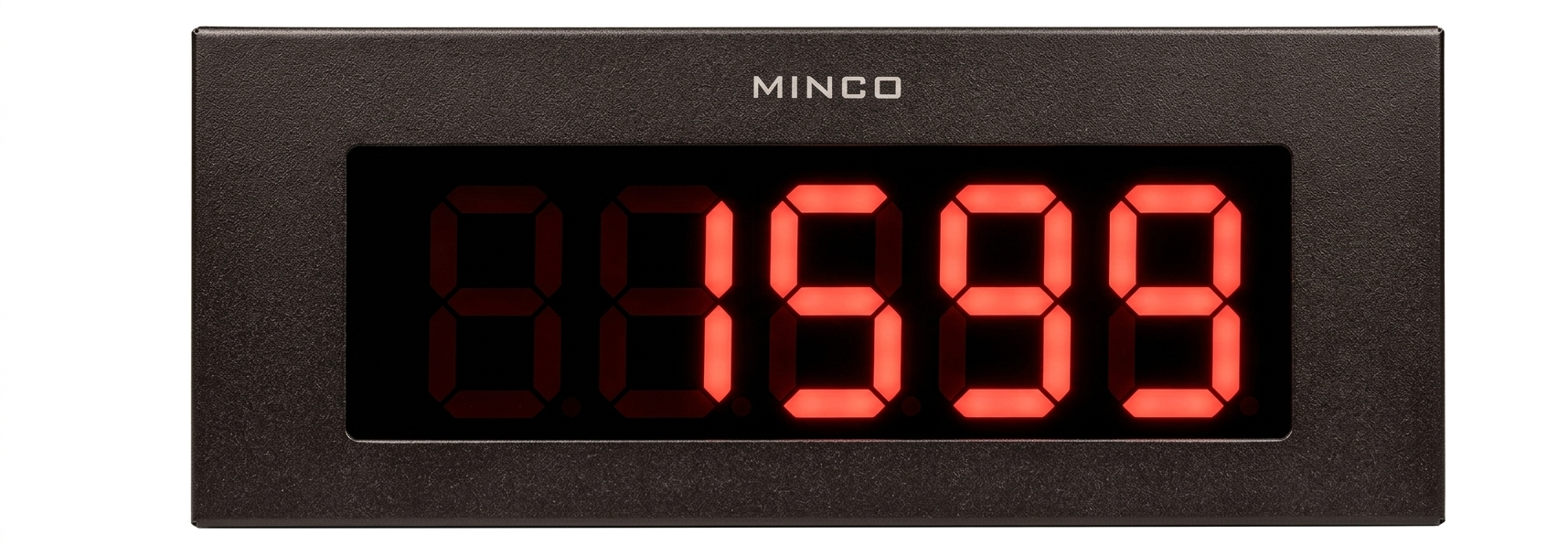

Large LED Display & Signal Indicator
Extra-large format LED temperature display for BOF and EAF control pulpits. Visible from 20+ metres. Includes hooter and signal lamp set.
Enquire →

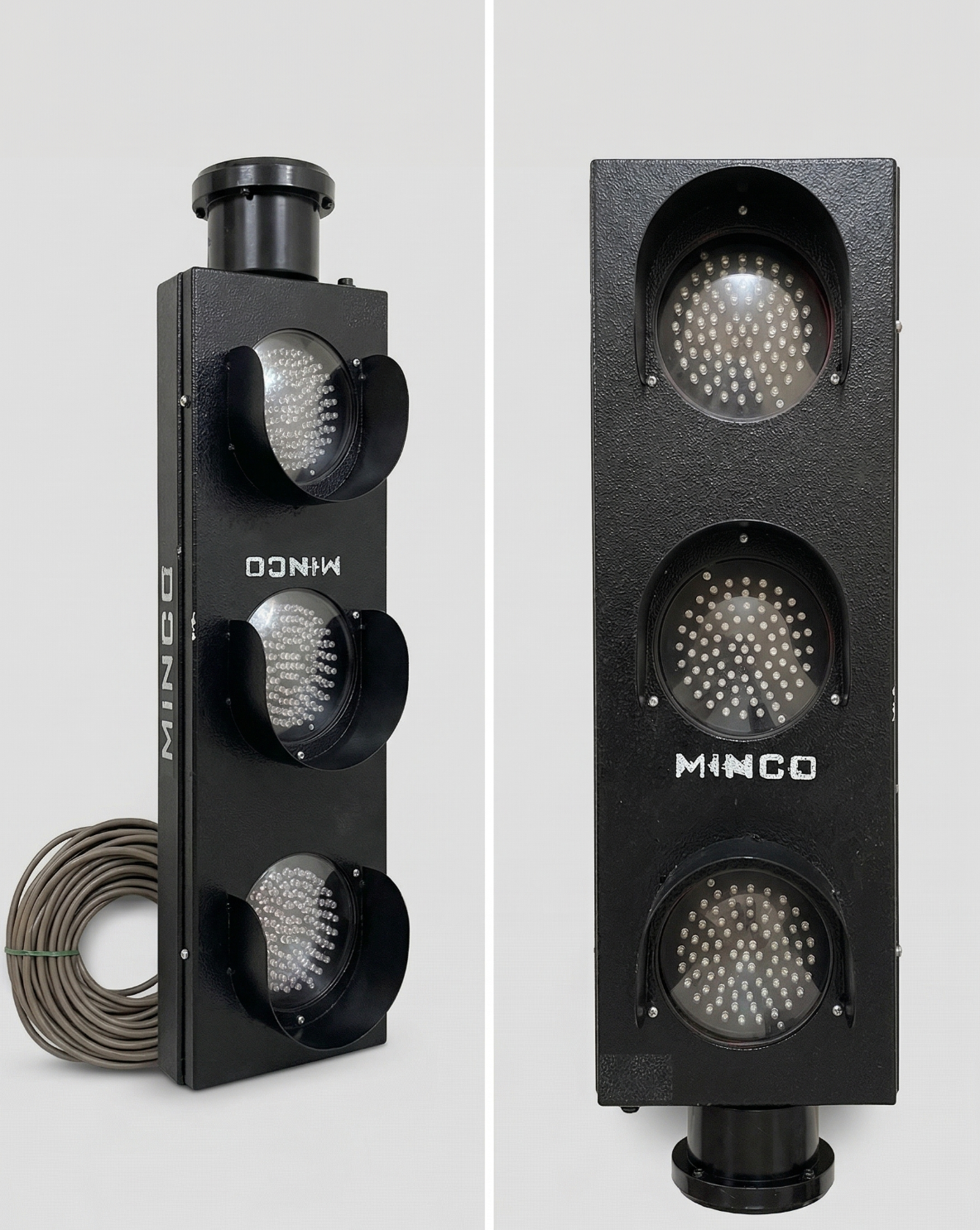

Signal Lamp & Hooter Set
Industrial signal lights and audible hooter sets for process status indication at the furnace. Compatible with all MINTHERM instruments.
Enquire →

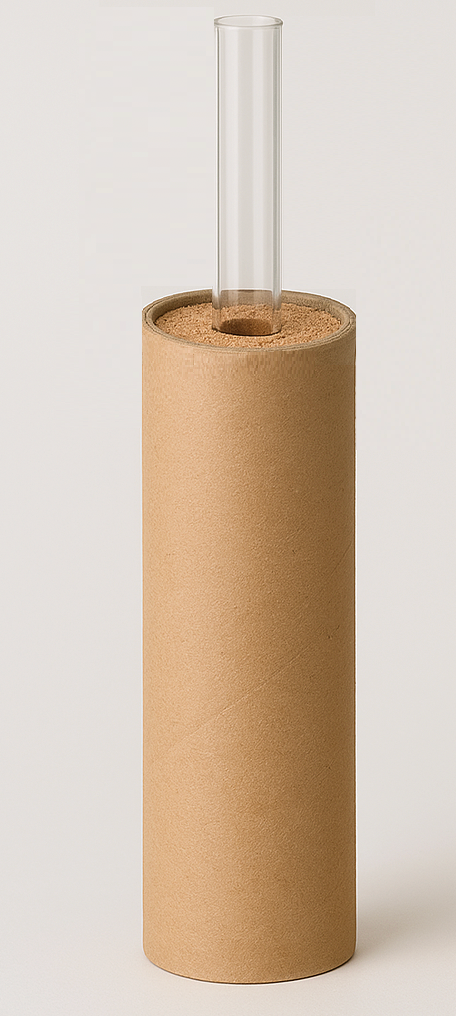

Hydrogen Pin Sampler
Disposable pin samplers for vacuum extraction hydrogen determination. Sealed glass or metal pin sampler for laboratory vacuum extraction analysis.
Enquire →

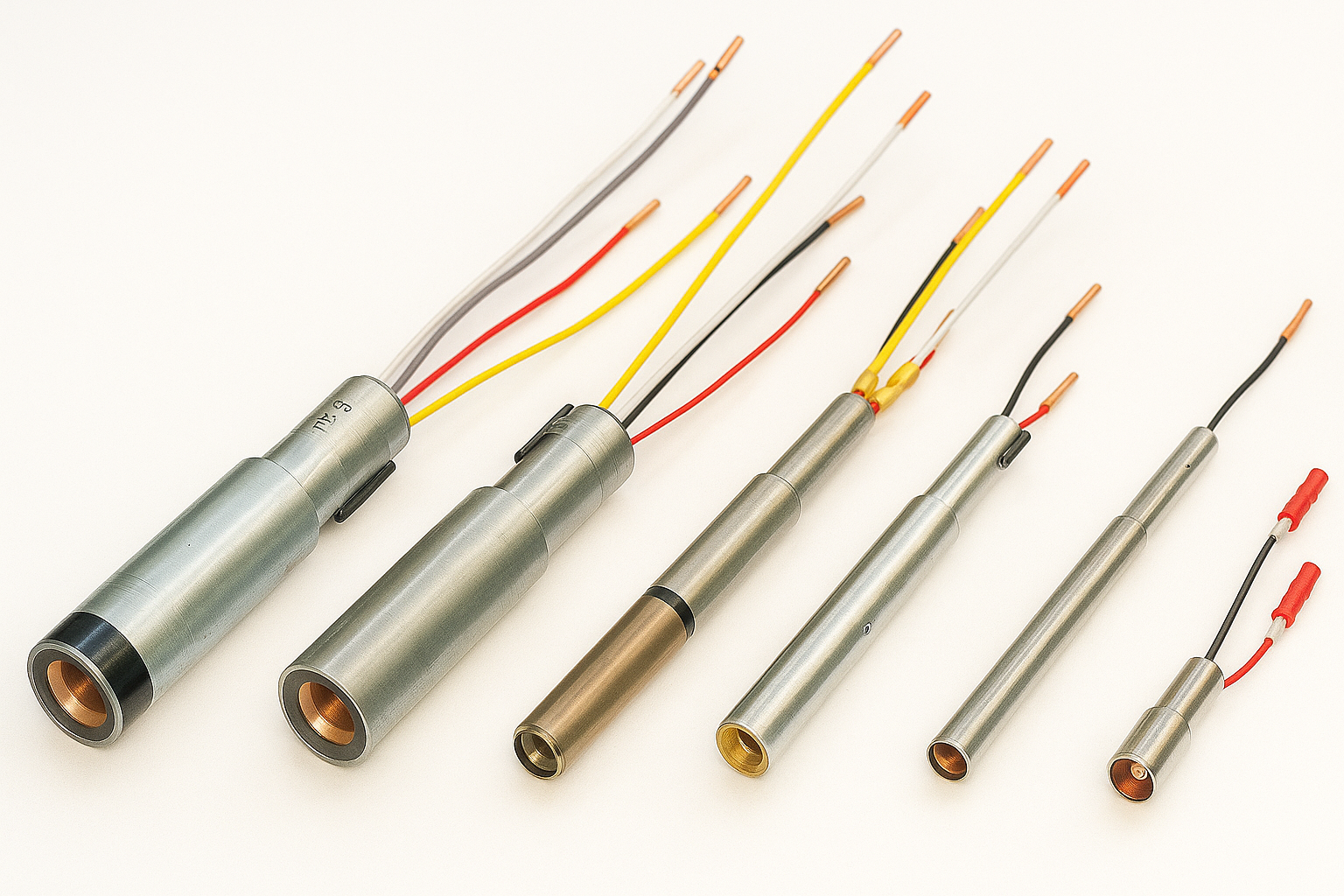

Industrial Contact Blocks & Connectors
Thermocouple-grade connectors, contact blocks and adaptors for lance-to-instrument connections. High-temperature rated, low thermal EMF.
